TIME-SENSITIVE NETWORKING AT THE INTELLIGENT EDGE



WIND RIVER SUPPORT WITH VXWORKS

Mission-critical systems increasingly rely on Ethernet connectivity between modules or devices. Traditional Ethernet (IEEE 802.3 and 802.1Q) had no concept of time regarding data delivery, and thus it was not possible to ensure that all real-time data would arrive at its destination on time — especially as data loads increased. Deterministic system behavior thus could not be achieved.

Time-Sensitive Networking (TSN) addresses this problem, guaranteeing minimal network latency and jitter, and it provides for bounded end-to-end delay and guaranteed message delivery time. TSN also allows the transmission of time-sensitive and non–time-sensitive data on the same network.

The VxWorks® real-time operating system (RTOS) brings this TSN capability to embedded systems software developers natively — meaning without the need for third-party add-ons. Further, VxWorks running as a guest OS on Wind River® Helix™ Virtualization Platform brings TSN capability to virtualized deployments.

>> Learn More About Time-Sensitive Networking

ADDRESSING DIVERSE INDUSTRY USE CASES

Industry-specific IEEE TSN profiles have been defined, enabling organizations to more easily navigate the evolving TSN landscape by using those standards applicable to their markets.

VxWorks and Helix Platform enable developers to cost-effectively implement TSN in their projects, addressing the key use cases within their industry.

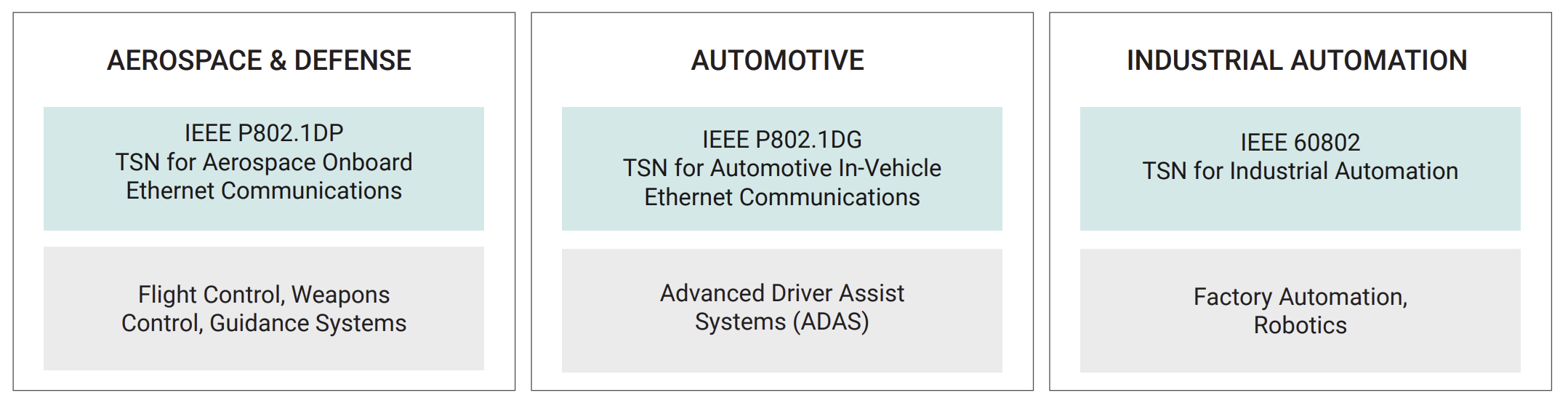

Figure 1. Diagrams to represent the Industry verticals, TSN profiles, and use cases
VXWORKS

VXWORKS

VxWorks is the world’s most widely deployed real-time operating system (RTOS). It enables the cost-effective development of highperformance, reliable, secure, robust, safety-certified mission-critical systems, leveraging the latest processor advancements. Development teams can use popular programming languages and integrate with the Wind River Studio DevSecOps solution for highly efficient development and testing. Deployment and updates can be delivered via OCI-compliant software container technology. These industry-leading capabilities significantly reduce time-tomarket and drive innovation, new business, and revenue.

Learn More

Collaborative Industry Positioning Paper on TSN

VxWorks: Real-Time Operating System for the Intelligent Edge

SUPPORTED TSN STANDARDS

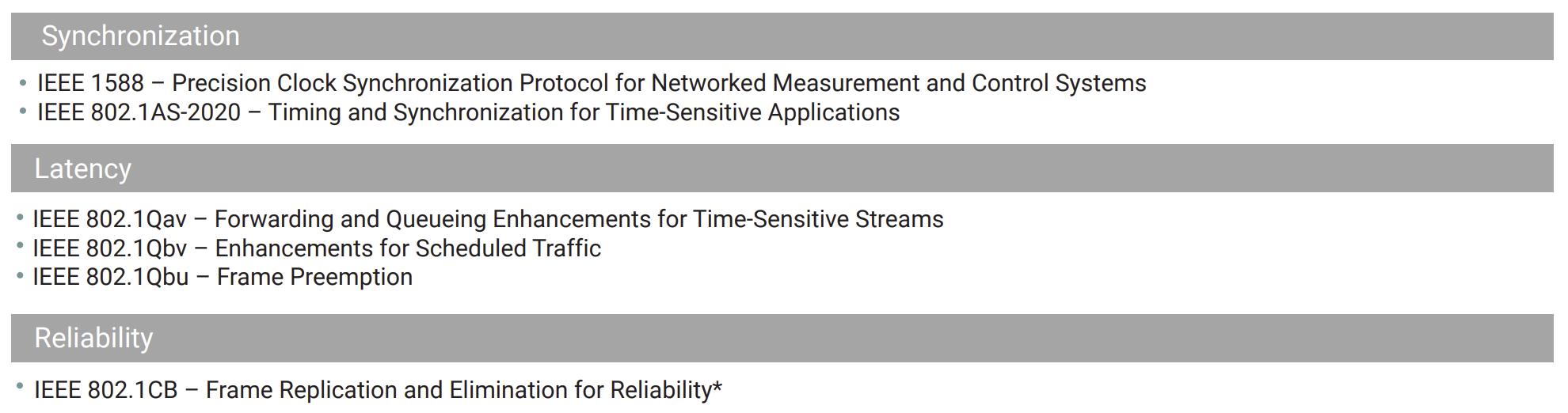

Figure 2. Supported TSN standards

THE BENEFITS OF TSN WITH VXWORKS

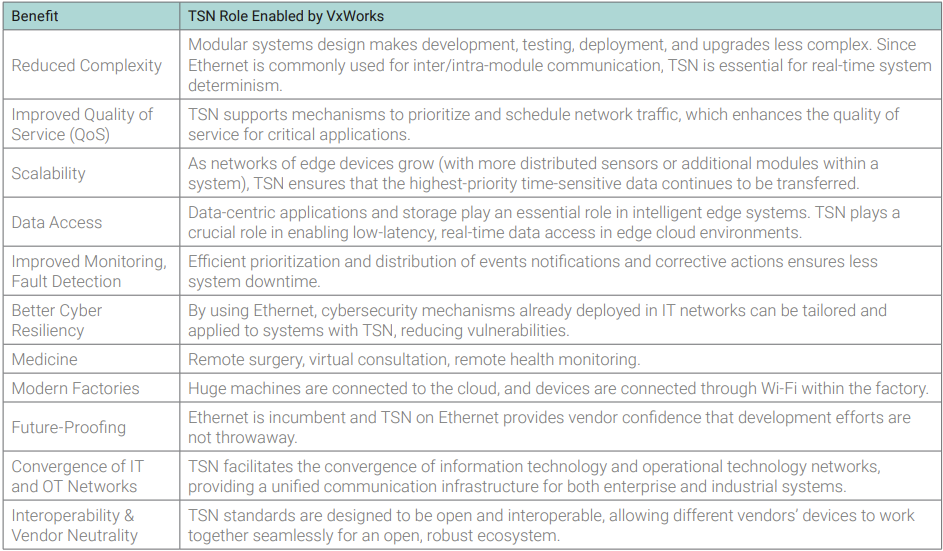

Table to enlist Benefits of TSN on VxWorksA teal banner with three sections: a chip icon with "High Performance, Scalability, and Determinism," a shield with "Proven Safety, Security, and Reliability," and a hand with a coin labeled "Reduced Cost and Time-to-Market."

VxWorks supports TSN on Ethernet ports for hardware from Intel, NXP, Texas Instruments, Renesas, Xilinx, and Aptiv. Contact us at salesinquiry@windriver.com for more details.
